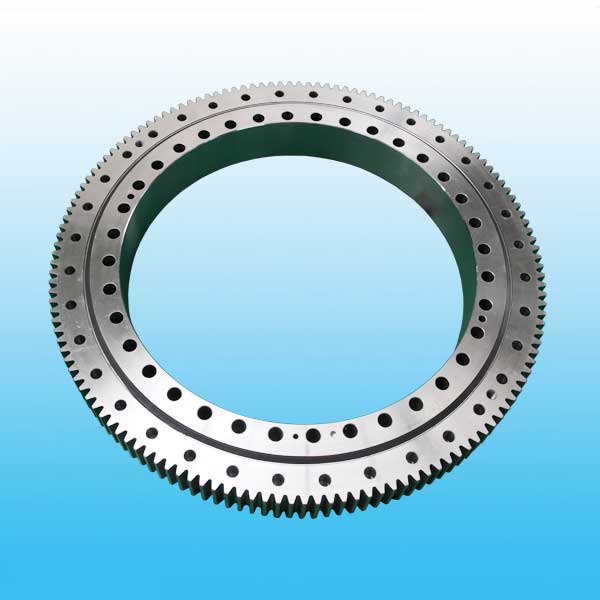

Double Row Ball Slewing Bearing (WD-07) External Gear
The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly
Title: WD-071
Weight/KG: 80-240
Strengths: The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery etc.
| Model | Dimensions ( mm) | Mounting dimension (mm) | |||||||||||
| Da | O | U | Di | Ha | Hb | H | La | na | da | Li | ni | di | |
| WD-071.22.372 | 504 | 466 | 374 | 278 | 75 | 87 | 95 | 430 | 16 | 18 | 314 | 16 | 18 |
| WD-071.22.476 | 608 | 570 | 478 | 382 | 75 | 87 | 95 | 534 | 24 | 18 | 418 | 24 | 18 |
| WD-071.22.580 | 712 | 674 | 582 | 486 | 76 | 88 | 98 | 638 | 24 | 18 | 522 | 24 | 18 |
| WD-071.22.948 | 1080 | 1042 | 950 | 854 | 76 | 88 | 98 | 1006 | 30 | 18 | 890 | 30 | 18 |
| WD-071.22.1064 | 1200 | 1162 | 1066 | 966 | 78 | 88 | 98 | 1124 | 36 | 20 | 1004 | 36 | 20 |
| Model | Gear Data | Gear force( KN) | Weight | |||
| P(mm) | Module | Z(teeth no.) | Allowed | Max | Kg | |
| WD-071.22.372 | 488 | 8 | 61 | 31 | 62 | 80 |
| WD-071.22.476 | 592 | 8 | 74 | 31 | 62 | 100 |
| WD-071.22.580 | 696 | 8 | 87 | 32 | 64 | 126 |
| WD-071.22.948 | 1064 | 8 | 133 | 32 | 64 | 208 |
| WD-071.22.1064 | 1184 | 8 | 148 | 33 | 66 | 240 |
