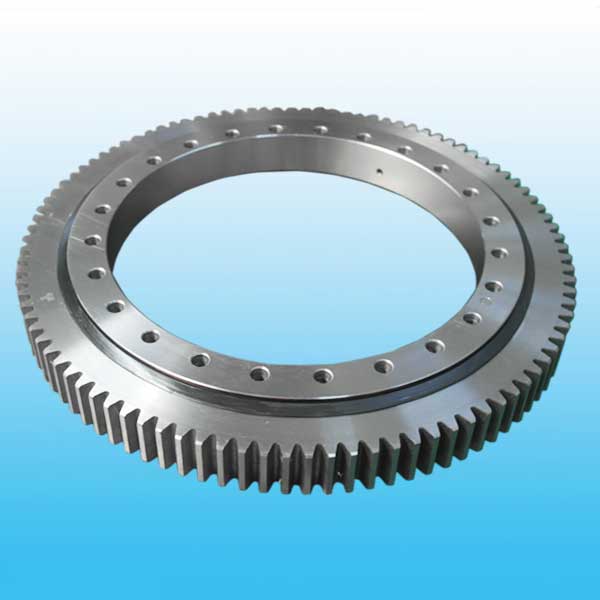

Light Type (WD-06) External Gear

The Thin Section Slewing Bearing, Slewing Ring has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly
Title:WD-061
Weight/KG:31-91
Strengths: The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery etc.
Gear data :
-0.8—-0.5."Km" is addendum reduction; m: module; z: teeth nos.

Model	Weight kg	Structural dimension (mm)							Gear Data				Gear force( KN)		Clearance (mm)
Model	Weight kg	D3	d1	H1	H2	Hu	Ho	d	m	z	Km	b	Allowed	Max	Axial	Radial
WD-061.20.0414	31	412.5	416	46	46	10.5	10.5	495	5	99	-0.5	45.5	11.75	23.5	≤0.28	≤0.24
WD-061.20.0544	43	542.5	546	46	46	10.5	10.5	630	6	105	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0644	52	642.5	646	46	46	10.5	10.5	732	6	122	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0744	59	742.5	746	46	46	10.5	10.5	828	6	138	-0.6	45.5	14.2	28.4	≤0.30	≤0.26
WD-061.20.0844	71	842.5	846	46	46	10.5	10.5	936	8	117	-0.8	45.5	18.93	37.86	≤0.30	≤0.26
WD-061.20.0944	77	942.5	946	46	46	10.5	10.5	1032	8	129	-0.8	45.5	18.93	37.86	≤0.30	≤0.26
WD-061.20.1094	91	1093	1095	46	46	10.5	10.5	1184	8	148	-0.8	45.5	18.93	37.86	≤0.30	≤0.26

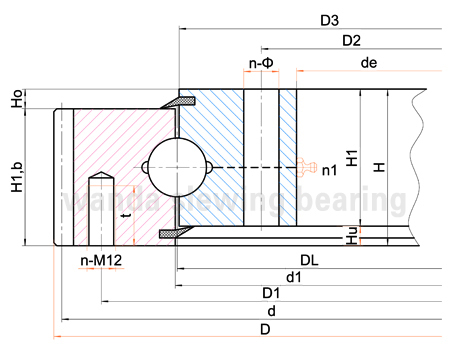

Model	Dimensions ( mm)			Mounting dimension (mm)
Model	D	de	H	D1	D2	n	Φ	M	t
WD-061.20.0414	504	342	56	455	368	20/24	13.5	12	20
WD-061.20.0544	641	472	56	585	498	28/32	13.5	12	20
WD-061.20.0644	743	572	56	685	598	32/36	13.5	12	20
WD-061.20.0744	839	672	56	785	698	36/40	13.5	12	20
WD-061.20.0844	950	772	56	885	798	36/40	13.5	12	20
WD-061.20.0944	1046	872	56	985	898	40/44	13.5	12	20
WD-061.20.1094	1198	1022	56	1135	1048	44/48	13.5	12	20

Note:

1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.

2. The Oil nipple's location can be change according to the user's application.

3. "Km" is addendum reduction; m: module; z: teeth nos.

4. For the load curve capacity,please download our catalogue for slewing bearing.
