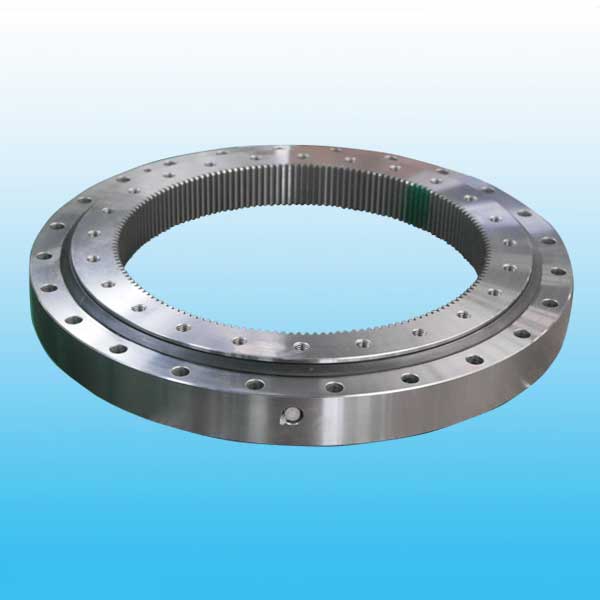

Light Type(WD-06) Internal Gear

The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly
Title: WD-062
Weight/KG: 31-91
Strengths: The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery etc.
Gear data :
0.8—-0.5."Km" is addendum reduction; m: module; z: teeth nos.

Model	Weight Kg	Structural dimension							Gear Data(KN)				Gear force		Clearance
Model	Weight Kg	D3	d1	H1	H2	Hu	Ho	d	m	z	k.m	b	Allowed	Max	Axial	Radial
WD-062.20.0414	31	415.5	413	45.5	45.5	10.5	10.5	335	5	67	-0.75	45.5	13.54	27.08	≤0.28	≤0.24
WD-062.20.0544	42	545.5	543	45.5	45.5	10.5	10.5	456	6	76	-0.6	45.5	16.00	32.00	≤0.30	≤0.26
WD-062.20.0644	50	645.5	643	45.5	45.5	10.5	10.5	558	6	93	-0.6	45.5	15.62	31.24	≤0.30	≤0.26
WD-062.20.0744	58	745.5	743	45.5	45.5	10.5	10.5	660	6	110	-0.6	45.5	15.32	30.64	≤0.30	≤0.26
WD-062.20.0844	69	845.5	843	45.5	45.5	10.5	10.5	752	8	94	-0.8	45.5	20.8	41.60	≤0.30	≤0.26
WD-062.20.0944	76	945.5	943	45.5	45.5	10.5	10.5	856	8	107	-0.8	45.5	20.49	40.98	≤0.30	≤0.26
WD-062.20.1094	91	1096	1093	45.5	45.5	10.5	10.5	1000	8	125	-0.8	45.5	20.16	40.32	≤0.30	≤0.26

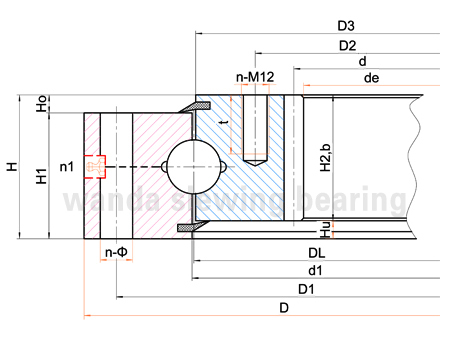

Model	Dimensions(mm)			Mounting dimension(mm)
Model	D	de	H	D1	D2	n	Φ	M	t
WD-062.20.0414	486	326.5	56	460	375	24	13.5	12	20
WD-062.20.0544	616	445.2	56	590	505	32	13.5	12	20
WD-062.20.0644	716	547.2	56	690	605	36	13.5	12	20
WD-062.20.0744	816	649.2	56	790	705	40	13.5	12	20
WD-062.20.0844	916	737.6	56	890	805	40	13.5	12	20
WD-062.20.0944	1016	841.6	56	990	905	44	13.5	12	20
WD-062.20.1094	1166	985.6	56	1140	1055	48	13.5	12	20

Note:

1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.

2. The Oil nipple's location can be change according to the user's application.

3. "Km" is addendum reduction; m: module; z: teeth nos.

4. For the load curve capacity, please download our catalogue for slewing bearing.
