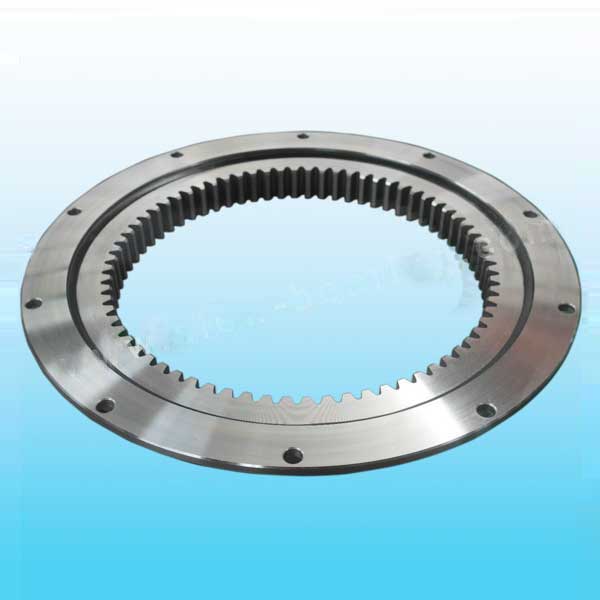

Light Type(WD-23) Internal Gear
The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly
Title: WD-232
Weight/KG: 26.9-80.3
Strengths: The Oil nipple's location can be change according to the user's application.
Application:
1. food machinaery,
2.canning machinery
3.environmental machinery etc.
Gear data :
-0.6—-0.8."Km" is addendum reduction; m: module; z: teeth nos.
| Model | Wght Kg |

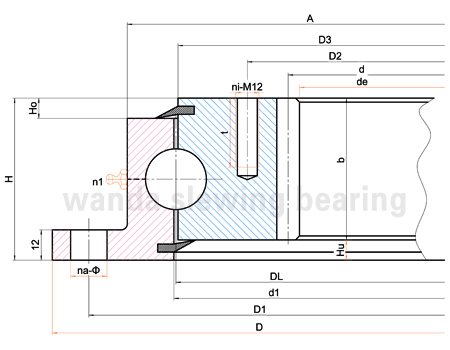

Structural dimension (mm) | Gear data | Gear force (KN) | Clearance(mm) | ||||||||||
| n1 | D3 | d1 | A | Hu | d | m | z | b | Km | Allowed | Max | Axial | Radial | ||
| WD-232.20.0414 | 26.9 | 4 | 412.5 | 415.5 | 453 | 10.5 | 335 | 5 | 67 | 45.5 | -0.75 | 13.54 | 27.08 | ≤0.5 | ≤0.5 |
| WD-232.20.0544 | 36.7 | 4 | 542.5 | 545.5 | 583 | 10.5 | 456 | 6 | 76 | 45.5 | -0.6 | 16.00 | 32.00 | ≤0.5 | ≤0.5 |
| WD-232.20.0644 | 43.4 | 4 | 642.5 | 645.5 | 683 | 10.5 | 558 | 6 | 93 | 45.5 | -0.6 | 15.62 | 31.24 | ≤0.5 | ≤0.5 |
| WD-232.20.0744 | 50.8 | 4 | 742.5 | 745.5 | 783 | 10.5 | 660 | 6 | 110 | 45.5 | -0.6 | 15.32 | 30.64 | ≤0.5 | ≤0.5 |
| WD-232.20.0844 | 61.3 | 4 | 842.5 | 845.5 | 883 | 10.5 | 752 | 8 | 94 | 45.5 | -0.8 | 20.8 | 41.60 | ≤0.5 | ≤0.5 |
| WD-232.20.0944 | 65.4 | 4 | 942.5 | 945.5 | 983 | 10.5 | 856 | 8 | 107 | 45.5 | -0.8 | 20.49 | 40.98 | ≤0.5 | ≤0.5 |
| WD-232.20.1094 | 80.3 | 4 | 1092.5 | 1096 | 1133 | 10.5 | 1000 | 8 | 125 | 45.5 | -0.8 | 20.16 | 40.32 | ≤0.5 | ≤0.5 |
| Model | Dimensions (mm) | Mounting dimension(mm) | ||||||||
| D | de | H | D1 | D2 | na | Φ/M | ni | Φ/M | t | |
| WD-232.20.0414 | 518 | 326.5 | 56 | 490 | 375 | 16 | 18 | 12 | M12 | 20 |
| WD-232.20.0544 | 648 | 445.5 | 56 | 620 | 505 | 20 | 18 | 16 | M12 | 20 |
| WD-232.20.0644 | 748 | 547.5 | 56 | 720 | 605 | 24 | 18 | 18 | M12 | 20 |
| WD-232.20.0744 | 848 | 649.2 | 56 | 820 | 705 | 24 | 18 | 20 | M12 | 20 |
| WD-232.20.0844 | 948 | 737.6 | 56 | 920 | 805 | 28 | 18 | 20 | M12 | 20 |
| WD-232.20.0944 | 1048 | 841.6 | 56 | 1020 | 905 | 32 | 18 | 22 | M12 | 20 |
| WD-232.20.1094 | 1198 | 985.6 | 56 | 1170 | 1055 | 32 | 18 | 24 | M12 | 20 |
Note:
1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.
2. The Oil nipple's location can be change according to the user's application.
3. "Km" is addendum reduction; m: module; z: teeth nos.
4. For the load curve capacity, please download our catalogue for slewing bearing.
