Light Type(WD-23) Without Gear

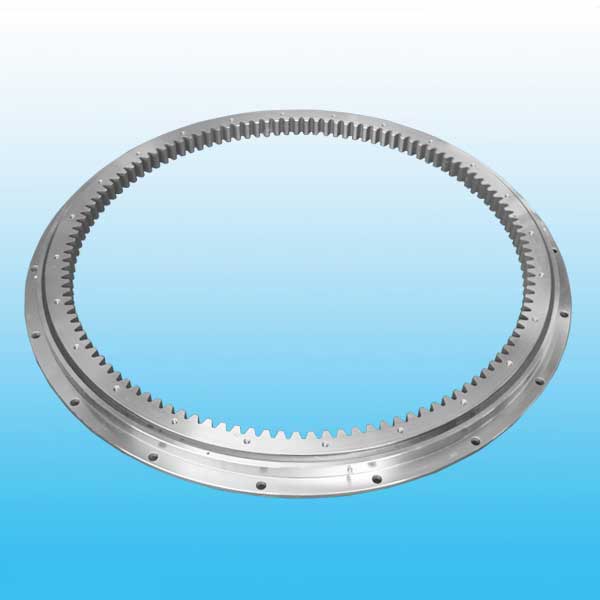

The Thin Section Slewing Bearing has the same structure with ordinary slewing bearing,but the weight is light,and rotate flexibly.
Title: WD-230
Weight/KG: 23-61
Strengths: The Oil nipple's location can be change according to the user's application.
Application:
1.food machinaery,
2.canning machinery
3.environmental machinery etc.

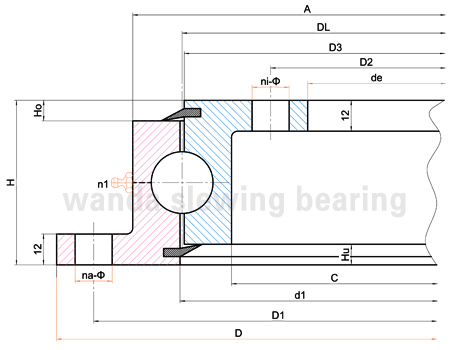

| Model | Weight Kg | Dimensions(mm) | Mounting dimension(mm) | Structural dimension(mm) | Clearance(mm) | |||||||||||||||
| D | de | H | D1 | D2 | na | Φ | ni | Φ/M | t | n1 | D3 | d1 | A | C | Hu | Ho | Axial | Radial | ||
| WD-230.20.0414 | 23.0 | 518 | 304 | 56 | 490 | 332 | 16 | 18 | 24 | 18 | 4 | 412.5 | 415.5 | 453 | 375 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.0544 | 30.4 | 648 | 434 | 56 | 620 | 462 | 20 | 18 | 28 | 18 | 4 | 542.5 | 545.5 | 583 | 505 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.0644 | 35.8 | 748 | 534 | 56 | 720 | 562 | 24 | 18 | 32 | 18 | 4 | 642.5 | 645.5 | 683 | 605 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.0744 | 42.2 | 848 | 634 | 56 | 820 | 662 | 24 | 18 | 32 | 18 | 4 | 742.5 | 745.5 | 783 | 705 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.0844 | 47.1 | 948 | 734 | 56 | 920 | 762 | 28 | 18 | 36 | 18 | 4 | 842.5 | 845.5 | 883 | 805 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.0944 | 52.3 | 1048 | 834 | 56 | 1020 | 862 | 32 | 18 | 40 | 18 | 4 | 942.5 | 945.5 | 983 | 905 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
| WD-230.20.1094 | 61.1 | 1198 | 984 | 56 | 1170 | 1012 | 32 | 18 | 40 | 18 | 4 | 1092.5 | 1095.5 | 1133 | 1055 | 10.5 | 10.5 | ≤0.5 | ≤0.5 | |
Note:
1. N1 is the numbers of lubricating holes. Oil cup M8×1JB/T7940.1~JB/T7940.
2. The Oil nipple's location can be change according to the user's application.
3. "Km" is addendum reduction; m: module; z: teeth nos.
4. For the load curve capacity, please download our catalogue for slewing bearing.
